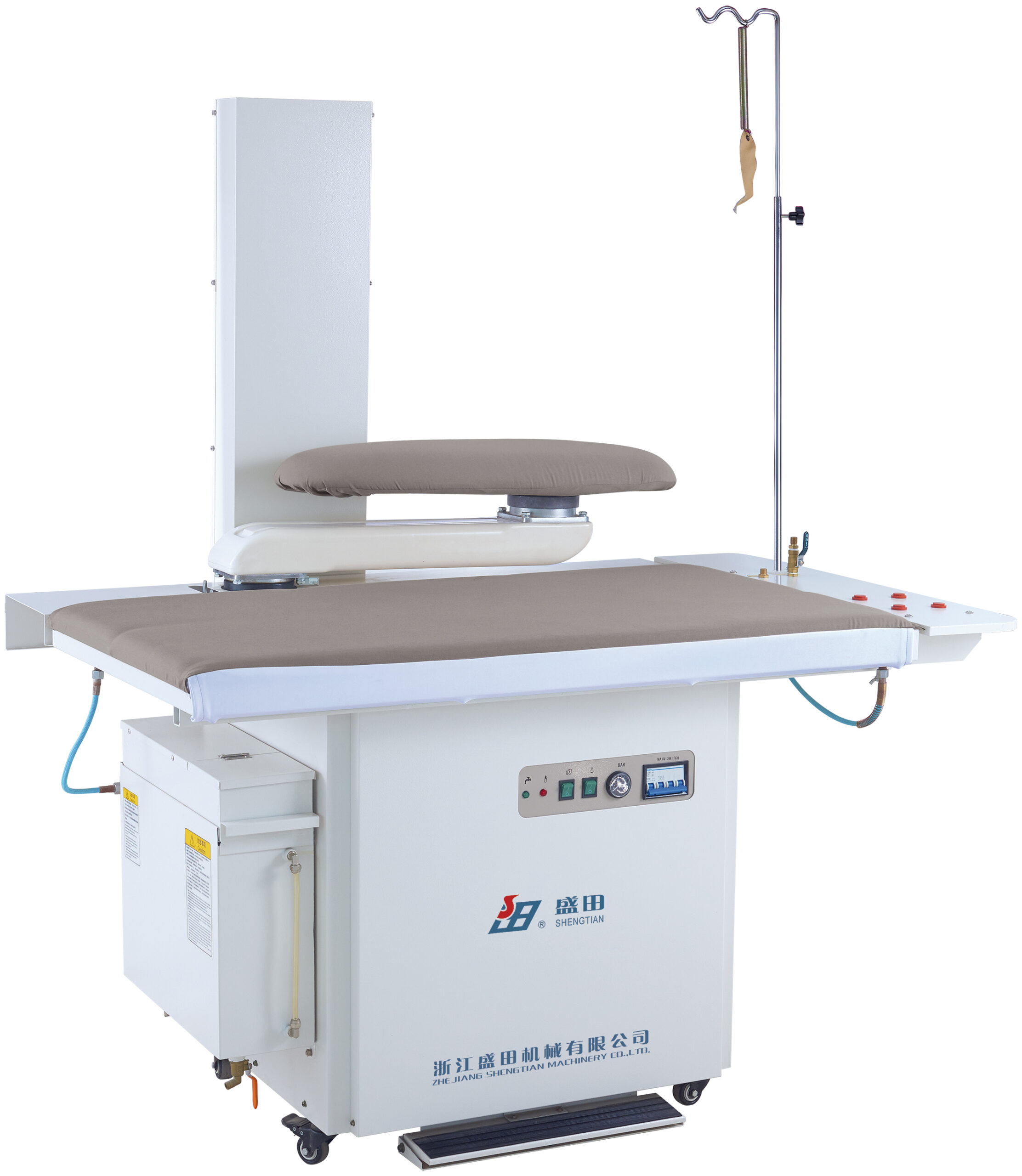

| MODEL | TDG-B6 |
|---|---|
| Table size | 650×1200mm |
| Table height | 800mm |
| Generator heating power | 4.5kW / 6kW |
| Generator pump power | 550W |
| Vacuum motor power | 750W |
| Vacuum perssure | <-150Pa |
| Rated steam pressure | 0.4MPa |
| Rated evaporation rate | 6kg/h / 9kg/h |
| Power supply | 220V/1PH 380V/3PH/50Hz |
| Rotational speed | 1400r/min |
| G.w. | 156kg |
| Out line dimension(L×W*H) | 1420×900×1570mm |
| Packing size | 1335×705×285mm |
| Table top | 965×990×935mm |
| BodyBuck | - |
| Chimmey |
