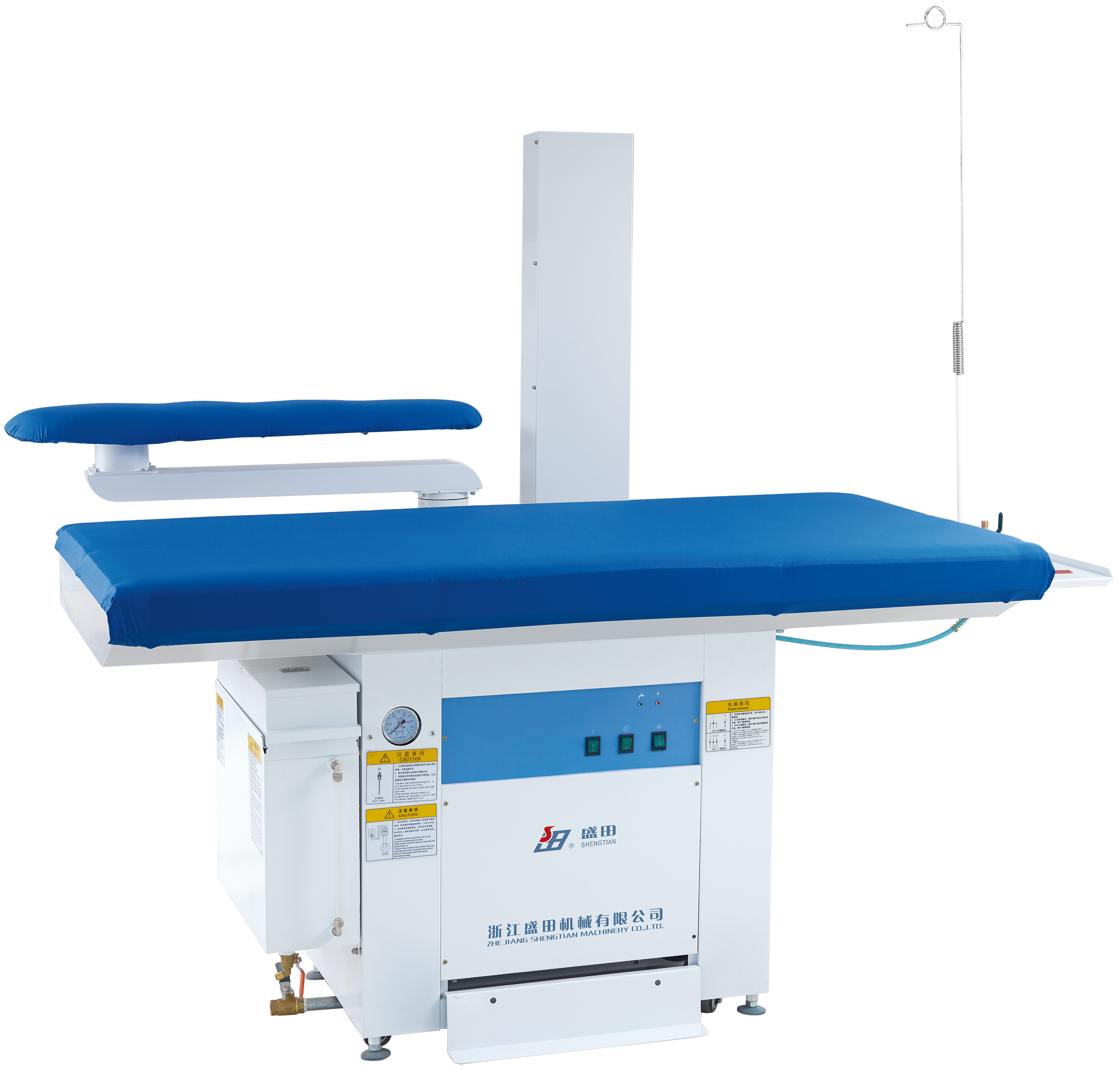

| MODEL | TDG-B1 |
|---|---|
| Table size | 820*1200mm/820*1500mm |
| Table height | 800mm |
| Generator heating power | 4.5KW/6KW |
| Generator pump power | 550V |
| Vacuum motor power | 750V |
| Vacuum perssure | <-150Pa |
| Rated steam pressure | 0.4MPa |
| Rated evaporation rate | 6kg/h/9kg/h |
| Power supply | 220V/1PH380V/3PH/50Hz |
| Rotational speed | 2800r/min |
| G.W. | 142/145kg |
| Out line dimension(L*W*H) | |
| Packing size | 1240*100O*165mm/1542/100O*165mm |
| Table top | 945*550*740mm/945*550*740mm |
| BodyBuck | 870*270*190mm/870*270*190mm |
| Chimmey | 450*320*250mm |
