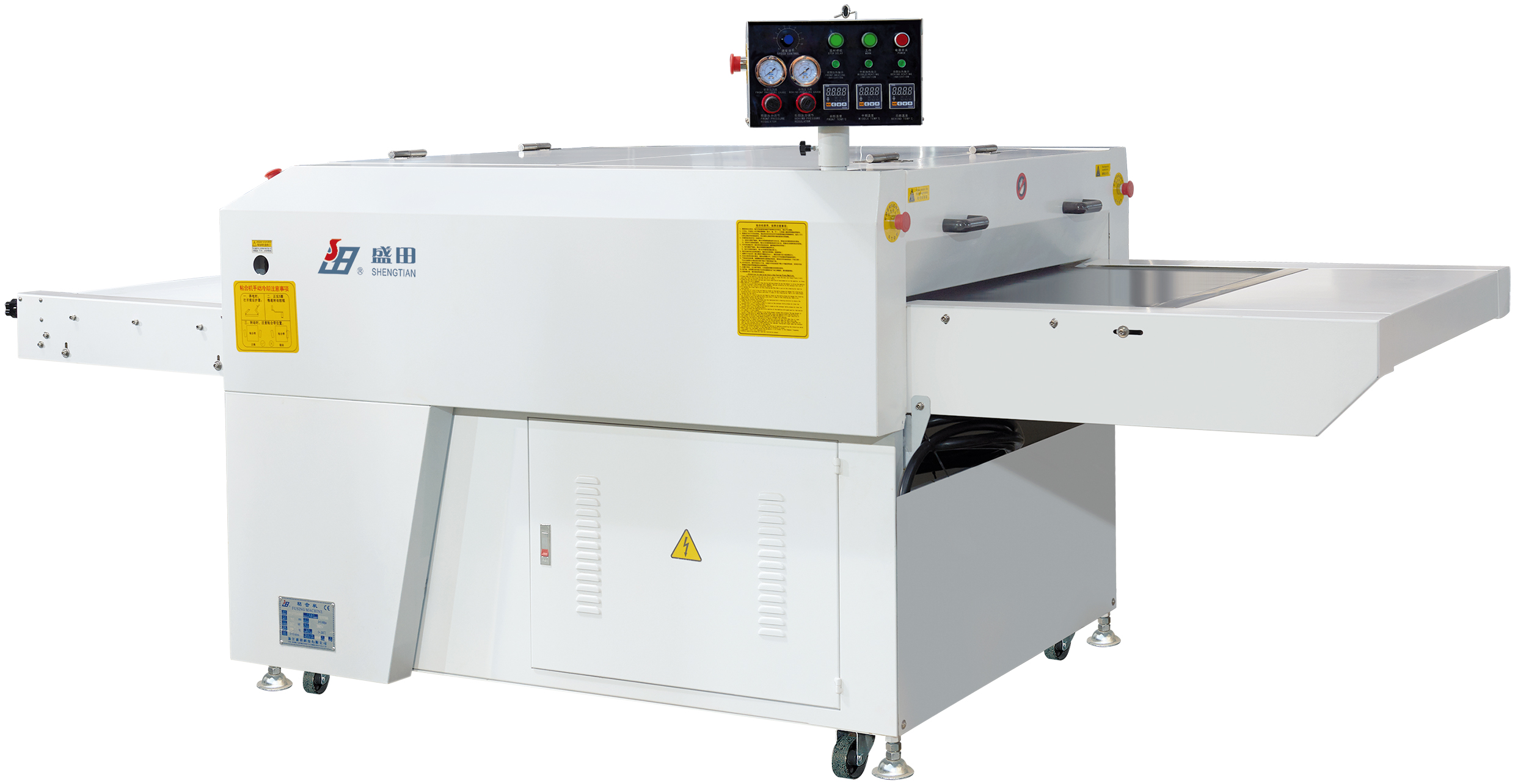

| MODEL | NHG900-Q2S | NHG1000-Q2S | NHG1200-Q2S |
|---|---|---|---|
| Pressurization mode | Pneumatic double roll pressure inlet belt extension | Pneumatic double roll pressure inlet belt extension | Pneumatic double roll pressure inlet belt extension |
| Max.bonding width | 900mm | 1000mm | 1200mm |
| Operating speed of conveyer belt | 0-10m/min | 0-10m/min | 0-10m/min |
| Bonding pressure | 0-0.4MPa | 0-0.4MPa | 0-0.4MPa |
| Bonding temperature | ≤ 190° C | ≤ 190° C | ≤ 190° C |
| Upper belt width*length | 900×3700mm | 1000×3700mm | 1200×3700mm |
| Bottom belt width*length | 900X4770mm | 1000X4770mm | 1200X4770mm |
| Exit section conveying width*length | 900X1600mm | 1000X1600mm | 1200X1600mm |
| Heating Area | 1600mm | 1600mm | 1600mm |
| Electric heating power | 19kW | 20.3kW | 19kW |
| Compressed air pressure | 0.7MPa | 0.7MPa | 0.7MPa |
| Pressure adjusting mode | Pneumatic | Pneumatic | Pneumatic |
| Power supply | 380V/3PH/50Hz | 380V/3PH/50Hz | 380V/3PH/50Hz |
| G.W. | 550kg | 600kg | 707kg |
| Outline dimension (L*W*H) | 3190×1406×1513mm | 3350X1560X1513mm | 3350X1760X1513mm |
| Packing size | 2800×1500×1580mm | 2800X1600X1580mm | 2800X1800X1580mm |
