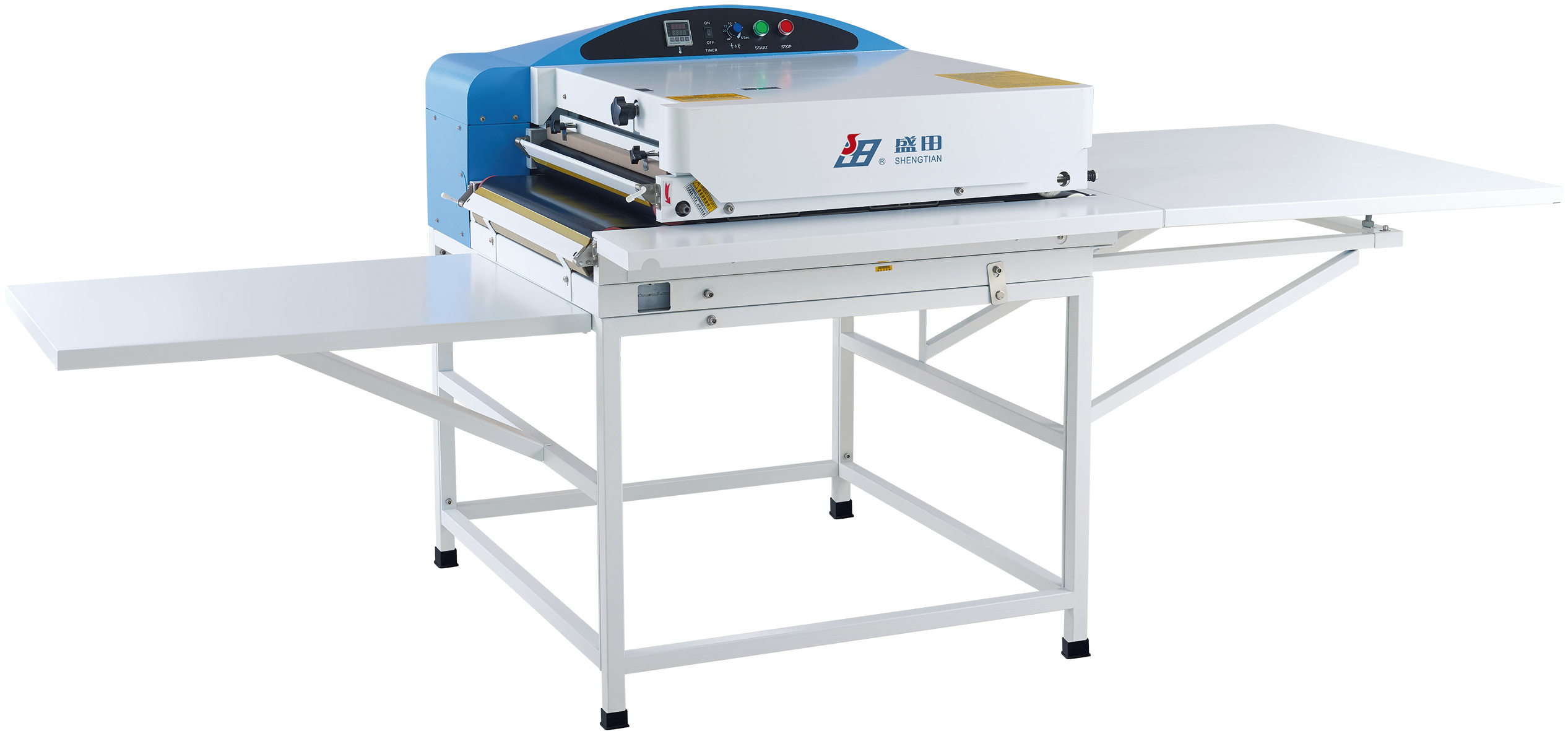

| MODEL | NHG300(400)(500)(600)-C/C2 |
|---|---|
| Max. bonding width | 300/400/500 / 600mm |
| Upper belt width*length | 300×1530/400×1530/ 500×1530 / 600x1530mm |
| Bottom belt width*length | 300×1840/400×1840/500×1840/600×1840mm |
| Operating speed of conveyer belt | 0-10m/min |
| Bonding pressure | O-0.3MPa |
| Bonding temperature | ≤ 190° c |
| Motor power of conveyer belt | C:70W C2:400W |
| Electric heating power | 4/5/6.5/7.5kW |
| Power supply | 220V/1PH 380V/3PH/50Hz |
| G.w. | 144 /160 /176 /194kg |
| Outline dimension(L*W*H) | 2320×900(1000/1100)×1095mm |
| Packing size | 1050x755(855/955/1055)×730mm |
