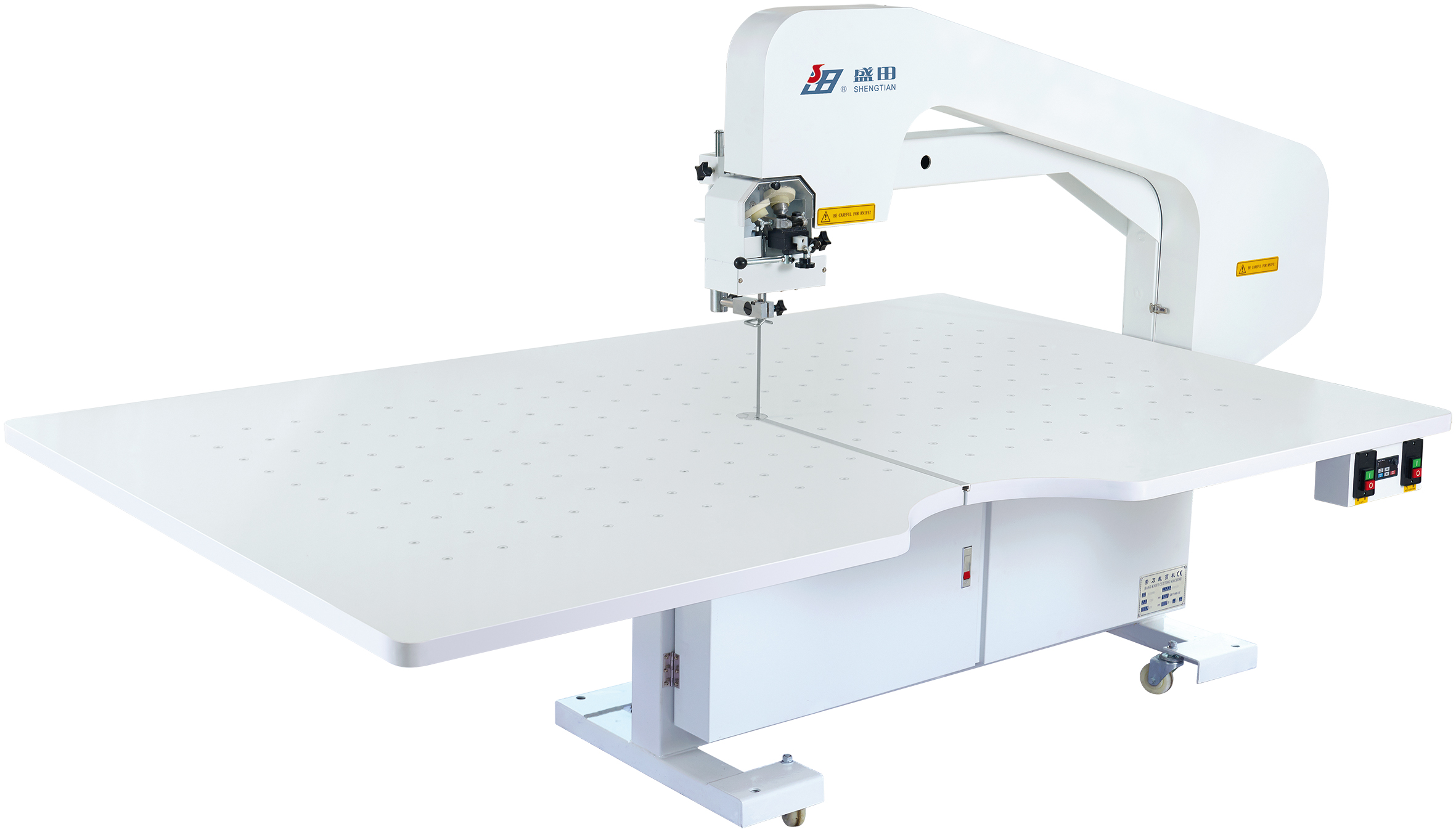

| MODEL | DCQ1200-A/B |
|---|---|
| Effective width right tool | 1200mm |
| Cutting height | 200mm |
| Bonding pressure | 15Kpa |
| Cutting motor power | 750W |
| Blower motor power | 550W |
| Linear velocity of tool | 11.0;12.2;13.3m/rnin |
| Tool specification | 0.45×10×4560mm |
| V belt specification | A-1575mm/B-1549mm |
| Worktable specification | 1500×2400mm |
| Power supply | 220V/1PH 380V/3PH/50Hz |
| G.w. | 338kg |
| Out line dimension(L*W*H) | 2862×1500×1570mm |
| Packing size | 2500×745×1750mm |
